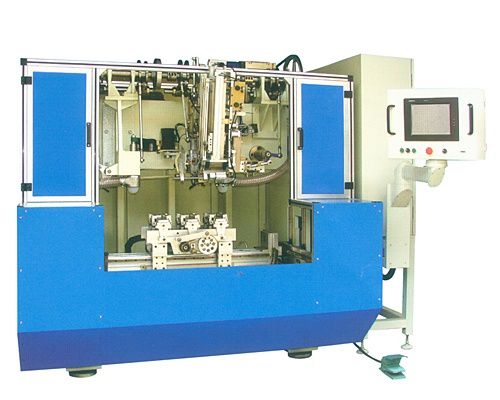

BM-CNC5ZK03H 5 Axis 3 Head Brush Drilling And Tufting Machine
The 5 axis 3 head drilling and tufting machine BM-CNC5ZK03H with two drill heads and one tufting head is to make varieties of toilet and fan-shaped brushes.
BM-CNC5ZK03H 5 Axis Single Head Brush Drilling and Tufting Machine Feature:
1. With 5.7 LCD screen,Chinese and English interface.
2. Supports data switching.The controller can be used as a U-Disk,and it also can be connected with U-Disk.
3. Convenient to adjust the hole position with the handwheel.
4. Long life, nice feel, and reliable keypad.
5. Safe to operate.With alarming fuction ,the system will give an alam and stop to run when the machine fails.
6. Full Featured, Editing functions of processing data, such as ADD, ALT,INSERT,DELETE, makes it convenient to solve these problems: the deviation of hole position, hole-repeating and hole-missing.
7. Easy to operate and program.
8. Large capacity,it can store 2000 programmes and each programme can imput 100,000 processing data.
9. Convenient to find the specific program by choosing the program number.
10. Standard designed circuit reduces the line interference and makes sure send the correct singal.
11. You can confirm whether the hole postion is right by step test after the program is saved.
12. Reasonable designed mechanical part position makes the machine good features.
13. Standard spare parts offered.
14. Spare parts are all made by our factory.It is very easy to replaceable.
15. Equipped with central lubrication device.
16. Security protect: Overload, short circuit protection.
Technical Paremeters for 5 Axis 3-Head Brush Drilling And Tufting Machine BM-CNC5ZK03H:
| Model | BM-CNC5ZK03H |
| NO. of Axis | 5-axis |
| Qty of Heads | 3 Heads, 2 drilling heads and 1 tufting head. |
| Setting of Worktable | High-precision straight-line rail and ball screw,steady and durable. |
| Material of Brush Handle | Polyethylene, polystyrene, return materials, wood |
| Material of Filaments | PP,PET,PVC,STEEL WIRE |
| Diameter of Filaments | 0.08mm-0.7mm |
| Application | To make varieties of toilet brushes and radial brushes |
| The Length of Filament(outside the hole) | 15-110mm |
| Diameter of Hole | 3.0mm-7.0mm |
| Colors of Brush Filaments | Double colors |
| Maximum Drilling and Tufting Speed | 450 holes/minutes |
| Max Speed | 15000n/min |
| High Speed Motor | Delta High-Speed Motor |
| AC Motor | Delta Brake Motor |
| Type&Brand of Driver/Motor | Delta servo motor by default, can adopt some brand motor&driver requested by users. |
| Adjust Speed | Frequency-conversion stepless-adjustable speed |
| Replaceable Fixture | FMS type. It can be easily changed to make other kinds of brushes. |
| Head Mode | Staple |
| Programme Storage | Store 2000 programme,each can imput 100 thousand processing data. |
| Program System | CNC system, high precision, stability and efficiency |
| Dimension(L*W*H) | 2500mm×1400mm×1980mm |
| Gross Weight | 2700kgs |
| Power | AC three phases 380, 50Hz |
| Total Power | 3KW |
| Compressed Air Pressure | 0.6-0.8Mpa |
