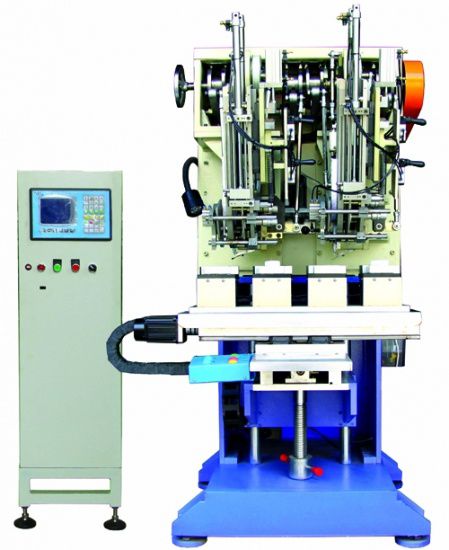

BM-CNC4Z02H 4 Axis Double Heads Brush Anchor Tufting Machine




BM-CNC4Z02H double head high speed brush anchor tufting machine can make flat surface brushes, curve surface brushes and the brushes with angle.

BM-CNC4Z02H 4 Axis Double Heads Brush Anchor Tufting Machine Feature:
1. This machine is a brush tufting machine, suitable for all kinds’of flat brushes, the diameter of the hole from 1.8-4.0mm and the max fiber height is 40mm.

2. Bored with single head, high speed processing, high volume, cost effective.
3. Used CNC controller, Chinese and English display, easy to understand and operate.
4. Wearing parts and spare parts are standardized designs easy for engineer to adjust and set up.

Technical Paremeters for 4 Axis Double Heads Brush Anchor Tufting Machine BM-CNC4Z02H:

ItemModelBM-CNC4Z02H
1Tufting StyleAnchor tufting
2NO. of Axis4 Axis
3Max Length of The Fiber (Outside The Hole)40mm
4Max Speed600 Hole/Min
5Diameter of The Hole1.8-4.0mm
6Journey of X Axis500mm
7Journey of Y Axis300mm
8Max Program Quantity100 Pcs
9Air Pressure6 Mpa
10Power Voltage3 Phase 380V, 50HZ
11Machine Power2 KW
12Size1100*1150*1830mm
13Weight950KG
