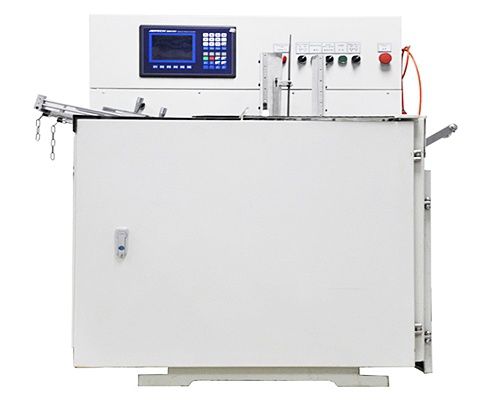

BM-CNC4Z01Y 4 Axis Toothbrush Tufting Machine




The 4 axis toothbrush tufting machine can make various of toothbrushes.

BM-CNC4Z01Y 4 Axis Toothbrush Tufting Machine Feature:
1. With 5.7 LCD screen, Chinese and English interface.
2. Supports data switching. The controller can be used as a U-Disk,and it also can be connected with U-Disk.
3. Convenient to adjust the hole position with the handwheel.
4. Long life, nice feel, and reliable keypad.
5. Safe to operate.With alarming fuction, the system will give an alam and stop to run when the machine fails.
6. Full Featured, Editing functions of processing data, such as ADD, ALT, INSERT, DELETE, makes it convenient to solve these problems: the deviation of hole position, hole-repeating and hole-missing.
7. Easy to operate and program.
8. Large capacity, it can store 2000 programmes and each programme can imput 100,000 processing data.
9. Convenient to find the specific program by choosing the program number.
10. Standard designed circuit reduces the line interference and makes sure send the correct singal.
11. You can confirm whether the hole postion is right by step test after the program is saved.
12. Reasonable designed mechanical part position makes the machine good features.
13. Standard spare parts offered.
14. Spare parts are all made by our factory.It is very easy to replaceable.

Technical Paremeters for 4 Axis Toothbrush Tufting Machine BM-CNC4Z01Y:

ItemModelBM-CNC4Z01Y
1NO. of Axis4-axis, including 2 axis for changing toothbrush handles and filaments
2The Stroke of X Axis48mm
The Stroke of Y Axis25mm
3Setting of WorktableHigh-precision straight-line rail and ball screw, steady and durable
4Material of Brush HandlePolyethylene, polystyrene, return materials, wood
5Material of FilamentsPP, nylon, bristle
6ApplicationTo tuft varieties of toothbrushes
7Diameter of Filaments0.08mm-1.2mm
8The Length of Filament(outside the hole)12mm
9Diameter of Hole1.5mm-2.8mm
10Colors of Brush FilamentsSingle color or double colors or three colors
11Maximum Tufting Speed12.5 holes/second
12AC MotorDelta Brake Motor
13Type&Brand of Driver/MotorServo motor&driver, can adopt some brand motor&driver requested by users.
14Adjust SpeedFrequency-conversion stepless-adjustable speed
15Replaceable FixtureOne common fixture
16Head ModeAnchor
17Programme StorageStore 2000 programme,each can imput 100 thousand processing data
18Program SystemCNC system,high precision,stability and efficiency
19Dimension(L*W*H)1400mm×1250mm×1250mm
20Gross Weight750KG
21PowerSingle-phase 220v, 3-phase 380v, 50-60Hz
22Total powerAbout 3kw
23Compressed Air Pressure0.6-0.8Mpa
