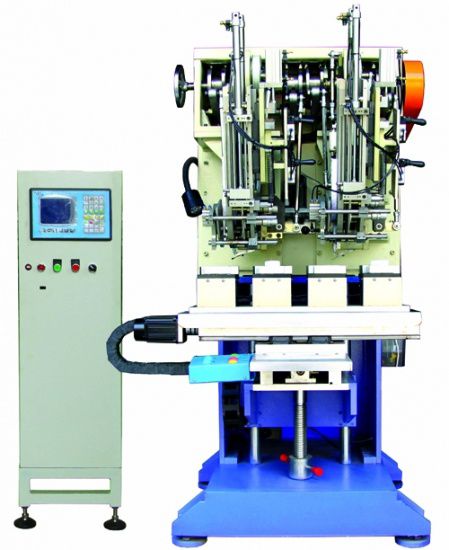

BM-CNC3Z02H 3 Axis Double Heads Brush Anchor Tufting Machine
BM-CNC3Z02H is double head high speed brush anchor tufting machine, using CNC controller can make flat surface brushes and curve surface brushes.
BM-CNC3Z02H 3 Axis Double Heads Brush Anchor Tufting Machine Feature:
1. This machine is a cnc brush tufting machine, suitable for all kinds’ brushes, the diameter of the hole from 1.8-4.0mm and the max fiber height is 40mm.
2. Bored with single head, high speed processing, high volume, cost effective.
3. The machine used CNC controller, Chinese and English display, easy to understand and operate.
4. Wearing parts and spare parts are standardized designs easy for engineer to adjust and set up.
Technical Paremeters for 3 Axis Single Head Brush Anchor Tufting Machine BM-CNC3Z02H:
Item | Model | BM-CNC3Z02H |
1 | Tufting Style | Anchor tufting |
2 | Axis: | 3 Axis |
3 | Max Length of The Fiber (Outside The Hole) | 40mm |
4 | Max Speed: | 600 Hole/Min |
5 | Diameter of The Hole | 1.8-4.0mm |
6 | Journey of X Axis | 500mm |
7 | Journey of Y Axis | 300mm |
9 | Max Program Quantity | 100 Pcs |
10 | Air Pressure: | 6 Mpa |
11 | Power Voltage: | 3 Phase 380V, 50HZ |
12 | Machine Power: | 2 KW |
13 | Size: | 1100*1150*1830mm |
14 | Weight: | 950KG |
