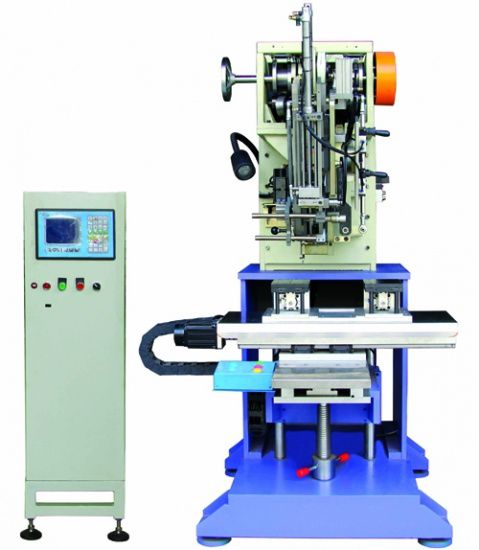

BM-CNC3Z01H 3 Axis Single Head Brush Anchor Tufting Machine




BM-CNC3Z01H is a cnc single head high speed brush anchor tufting machine can make flat surface brushes and curve surface brushes.

BM-CNC3Z01H 3 Axis Single Head Brush Anchor Tufting Machine Feature:
1. This machine is a cnc brush tufting machine, suitable for all kinds’ brushes, the diameter of the hole from 1.8-4.0mm and the max fiber height is 40mm.

2. Bored with single head, high speed processing, high volume, cost effective for brush machinery.
3. Used CNC controller, Chinese and English display, easy to understand and operate.
4. Wearing parts and spare parts are standardized designs easy for engineer to adjust and set up.

Technical Paremeters for 3 Axis Single Head Brush Anchor Tufting Machine BM-CNC3Z01H:

ItemModelBM-CNC3Z01H
1Tufting StyleAnchor tufting
2NO. of Axis3 Axis
3Max Length of The Fiber (Outside The Hole)40mm
4Max Speed:600 Hole/Min
5Diameter of The Hole1.8-4.0mm
6Journey of X Axis500mm
7Journey of Y Axis300mm
9Max Program Quantity100 Pcs
10Air Pressure:6 Mpa
11Power Voltage:3 Phase 380V, 50HZ
12Machine Power:2 KW
13Size:1100*1150*1830mm
14Weight:950KG
