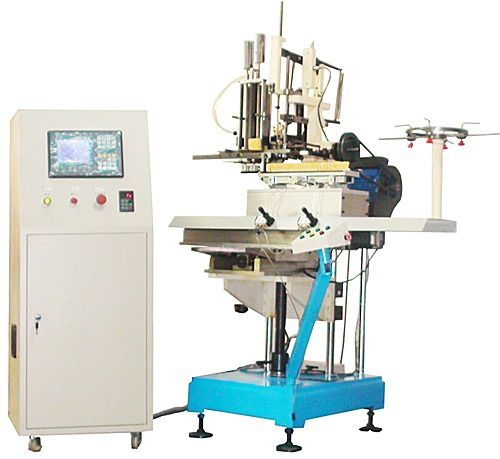

BM-CNC2Z03 2 Axis Martin Tufting Machine
The 2 axis tufting machine BM-CNC2Z03 is to make plastic or wooden brooms and brushes, and the handle bases must already with holes.
BM-CNC2Z03 2 Axis Martin Tufting Machine Feature:
1. This martin tufting machine has 5.7 LCD screen, Chinese and English interface.
2. Supports data switching.The controller can be used as a U-Disk,and it also can be connected with U-Disk.
3. Convenient to adjust the hole position with the handwheel.
4. Long life, nice feel,and reliable keypad.
5. Safe to operate.With alarming fuction ,the system will give an alam and stop to run when the machine fails.
6. Full featured, editing functions of processing data, such as ADD, ALT,INSERT,DELETE, makes it convenient to solve these problems: the deviation of hole position, hole-repeating and hole-missing.
7. Easy to operate and program.
8. Large capacity, the tufting machine can store 2000 programmes and each programme can imput 100,000 processing data.
9. Convenient to find the specific program by choosing the program number.
10. Standard designed circuit reduces the line interference and makes sure send the correct singal.
11. You can confirm whether the hole postion is right by step test after the program is saved.
12. Reasonable designed mechanical part position makes the machine good features.
13. Standard spare parts offered.
14. Spare parts are all made by our factory.It is very easy to replaceable.
Technical Paremeters for 2 Axis Martin Tufting Machine BM-CNC2Z03:
| Item | Model | BM-CNC2Z03 |
| 1 | NO. of Axis | 2-axis |
| 2 | The Stroke of X Axis | 600mm, provide flexible customize for customer. |
| The Stroke of Y Axis | 200mm, provide flexible customize for customer. | |
| 3 | Setting of Worktable | High-precision straight-line rail and ball screw, steady and durable |
| 4 | Material of Brush Handle | Polyethylene, polystyrene, return materials, wood |
| 5 | Material of Filaments | PP,PET,PVC,STEEL WIRE |
| 6 | Application | To tuft varieties of flat brushes |
| 7 | Diameter of Filaments | 0.08mm-1.2mm |
| 8 | The length of filament(outside the hole) | 35mm-70mm |
| 9 | Diameter of Hole | 2mm-8mm |
| 10 | Colors of Brush Filaments | Single color or double colors |
| 11 | Maximum Tufting Speed | 4-6 holes/second |
| 12 | AC Motor | Delta Brake Motor |
| 13 | Type&Brand of Driver/Motor | Stepper motor&driver, can adopt some brand motor&driver requested by users |
| 14 | Adjust Speed | Frequency-conversion stepless-adjustable speed |
| 15 | Replaceable Fixture | FMS type. It can be easily changed to make other kinds of brushes |
| 16 | Head Mode | Staple |
| 17 | Programme Storage | Store 2000 programme, each can imput 100 thousand processing data |
| 18 | Program System | CNC system, high precision, stability and efficiency |
| 19 | Dimension(L*W*H) | 1250mm×1150mm×1400mm |
| 20 | Gross Weight | 380KGS |
| 21 | Power | Single-phase 220v, 3-phase 380v, 50-60Hz |
| 22 | Total power | About 600w |
| 23 | Compressed Air Pressure | 0.6-0.8Mpa |
