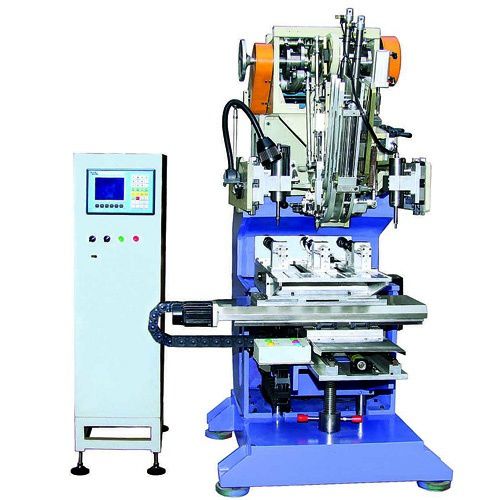

BM-CNC2ZK21 2 Axis 3 Heads Brush Drilling and Tufting Machine




The 2 axis 3 head brush drilling and tufting machine BM-CNC2ZK21 with 2 drill heads and 1 tufting head is to make varieties of toilet and flat brushes.

BM-CNC2ZK21 2 Axis 3 Heads Brush Drilling and Tufting Machine Feature:
1. This machine is a brush drilling and tufting machine, with 1 tufting head and 2 drilling heads, suitable for all kinds’ of flat brushes, the diameter of the hole from 1.8-4.0mm and the max fiber height is 40mm.

2. Bored with single head, high speed processing, high volume, cost effective.
3. Used CNC controller with, Chinese and English display, easy to understand and operate.
4. Wearing parts and spare parts are standardized designs easy for engineer to adjust and set up.

Technical Paremeters for 2 Axis 3 heads brush drilling and tufting machine BM-CNC2ZK21:

ItemModelBM-CNC2ZK21
1NO. of Axis2 Axis
2Max Length of The Fiber (Outside The Hole)40mm
3Max Speed600 Hole/Min
4Diameter of The Hole1.8-4.0mm
5Journey of X Axis500mm
6Journey of Y Axis300mm
7Max Program Quantity100 Pcs
8Air Pressure6 Mpa
9Power Voltage3 Phase 380V, 50HZ
10Machine Power2 KW
11Size1100*1150*1830mm
12Weight950KG
