  • BM-CNC5ZK05H 5 Axis 5 Head Brush Drilling And Tufting Machine
    The 5 axis 5 head high speed drilling and tufting machine BM-CNC5ZK05H with 3 drill heads and 2 tufting head is to make varieties of toilet brushes and radial brushes. BM-CNC5ZK05H 5 Axis 5-Head Brush Drilling And Tufting Machine Feature: 1. The computer
  • BM-CNC5ZK03H 5 Axis 3 Head Brush Drilling And Tufting Machine
    BM-CNC5ZK03H 5 Axis 3 Head Brush Drilling And Tufting Machine SC The 5 axis 3 head drilling and tufting machine BM-CNC5ZK03H with two drill heads and one tufting head is to make varieties of toilet and fan-shaped brushes. BM-CNC5ZK03H 5 Axis Single Head
  • BM-CNC4Z02H 4 Axis Double Heads Brush Anchor Tufting Machine
    BM-CNC4Z02H double head high speed brush anchor tufting machine can make flat surface brushes, curve surface brushes and the brushes with angle. BM-CNC4Z02H 4 Axis Double Heads Brush Anchor Tufting Machine Feature: 1. This machine is a brush tufting machi
  • BM-CNC4Z01H 4 Axis Single Head Brush Anchor Tufting Machine
    BM-CNC4Z01H single head high speed brush anchor tufting machine, standardized designs by brush machine manufacturer, can make flat surface brushes, curve surface brushes and the brushes with angle. BM-CNC4Z01H 4 Axis Single Head Brush Anchor Tufting Machi
  • BM-CNC4K01Q Toilet Brush Drilling Machine
    BM-CNC4K01Q is a 4 axis toilet brush drilling machine, can drill kinds of different material. With 5.7 LCD screen,Chinese and English interface, Supports data switching.The controller can be used as a U-Disk,and it also can be connected with U-Disk...
More >>

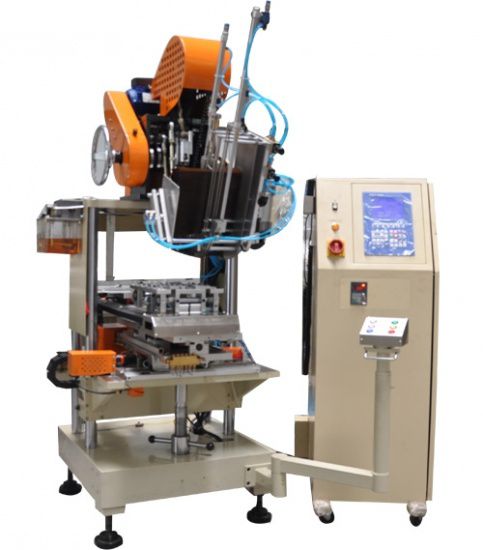

BM-CNC2Z01B 2 Axis Single Head Brush Anchor Broom Tufting Machine




BM-CNC2Z01B is a 2 axis single head brush tufting machine, suitable for all kinds’ of flat brushes and brooms, with high performance CNC control system.

BM-CNC2Z01B 2 Axis Single Head Brush Anchor Broom Tufting Machine Feature:
1. This machine is a brush tufting machine, suitable for all kinds’ of flat brushes and brooms, the diameter of the hole from 3.0-7.0mm and the max fiber height is 120mm.
2. This brush machine CNC control system has Chinese and English display, easy to understand and operate.
3. Bored with single head, high speed processing, high volume, cost effective.
4. Wearing parts and spare parts are standardized designs easy for engineer to adjust and set up.

Technical Paremeters for 2 Axis Single Head Brush Anchor Broom Tufting MachineBM- CNC2Z01B:

ItemModelBM-CNC2Z01B
1Tufting StyleAnchor tufting
2NO. of Axis2 Axis
3Max Length of The Fiber (Outside The Hole)120mm
4Max Speed600 Hole/Min
5Diameter of The Hole3.0-7.0mm
6Journey of X Axis400mm
7Journey of Y Axis200mm
9Max Program Quantity100 Pcs
10Air Pressure6 Mpa
11Power Voltage3 Phase 380V, 50HZ
12Machine Power2 KW
13Size1100*1150*1830mm
14Weight950KG
